Mirrored Vanity

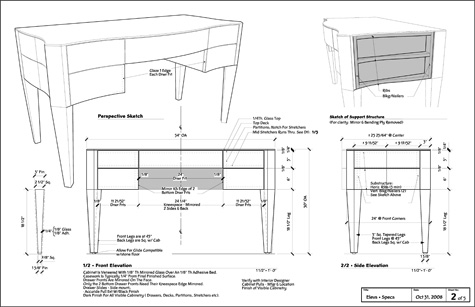

This vanity is veneered with 1/8" thick mirrored glass which needed an 1/8" thick adhesive bed. The cabinet shop needed to build the carcase typically a 1/4" smaller than the final finished dimension.

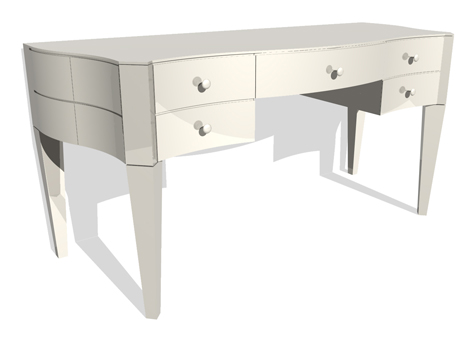

For the rendering below I used a satin stainless steel texture, the mirrored texture was too distracting (see the site photo below).

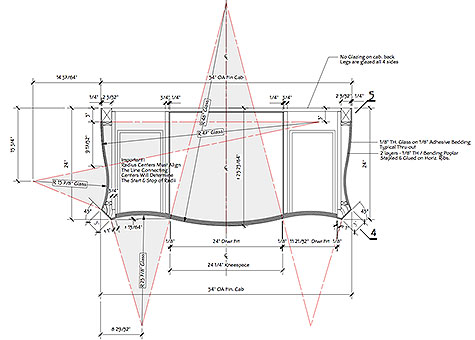

The layout of the cabinet curves were driven by stock bent glass radii. Two different radii are used for the serpentine finished ends; compound curves are a custom order and were not in the budget.

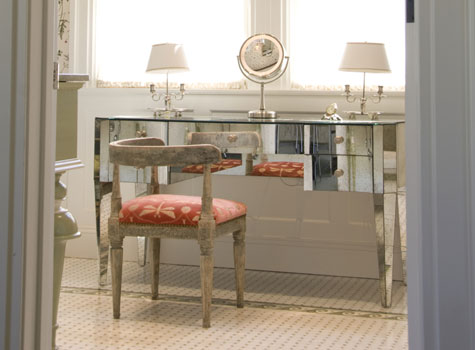

A view of the installed vanity.
Photo courtesy of Michael Burg Interiors.
