Architectural Door Set

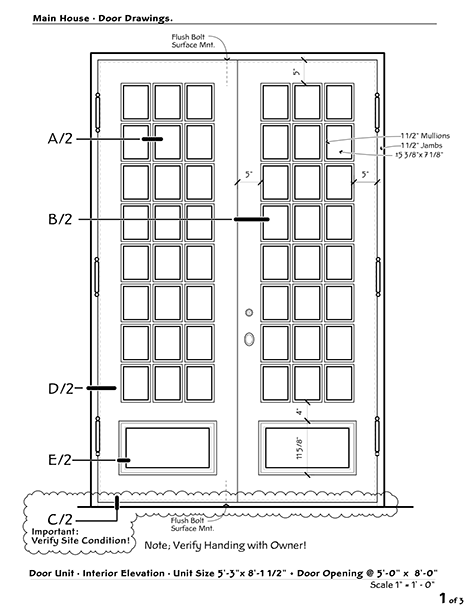

Shop drawings for a french door unit, each door has a solid lumber panel with applied bolection molding and 3 over 8, true divided lights. The project required 7 units.

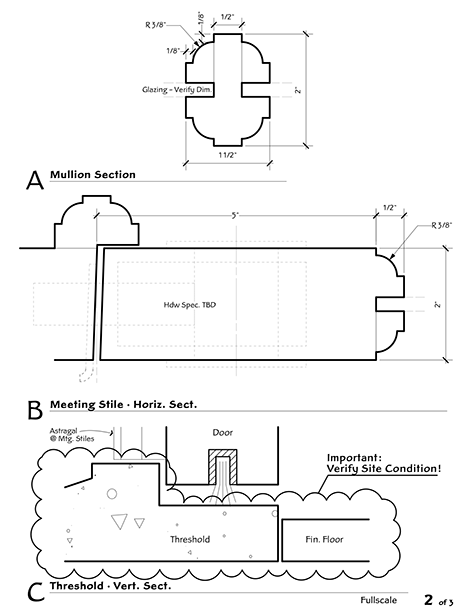

Section details: mullion, meeting stile, and threshold.

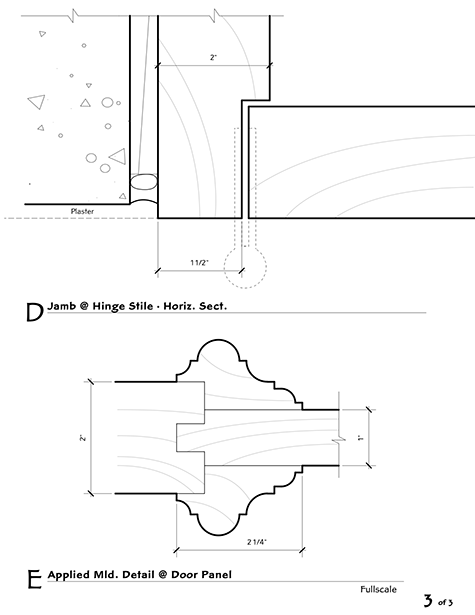

Section details: jamb, and bolection molding at the 5/4 panel.
