Architectural Window Set

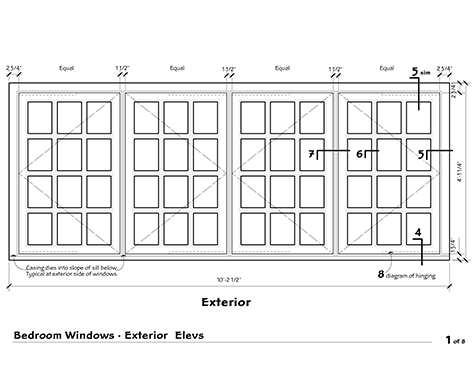

Shop drawing package for casement windows: 12 pane true divided light. Each window has a pair of 4 bar stainless steel hinges which are morticed into the top and bottom sash.

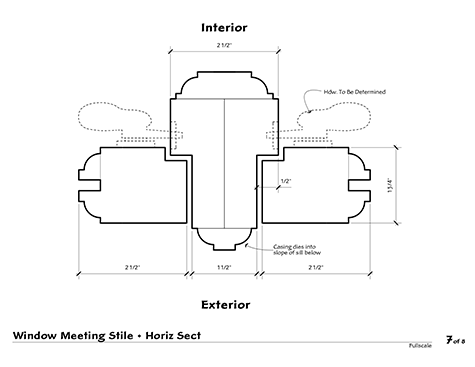

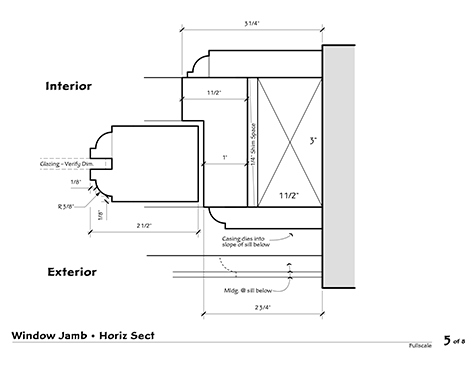

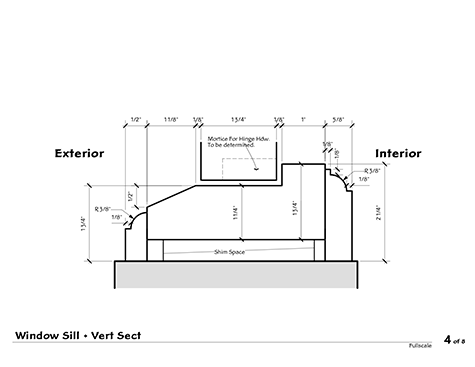

Showing section details through the sill, jamb, and meeting stiles.
